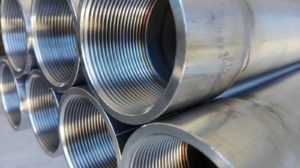

Stainless steel pipes

The choose of stainless steel to make an artesian well means absolute guarantee of resistance and pipes long lasting. Inox steel main feature in fact is excellent corrosion and mechanical resistance. Depending on requested diameter, pipes are made by rolling machine with MIG welding or by forming machine with TIG and plasma welding and are available in AISI 304 and 316 L grade.

OUR RANGE
Diameters: from 33,4 to 508,9 mm
Wall thicknesses: from 2,0 to 10,0 mm
Connections: welding ends with or without collars, with M/F threaded couplings
Lengths: 6 mt standard

Stainless steel pipes range

OUTSIDE DIAMETER Ø (mm)	WALL THICKNESS mm
	2.30	2.60	2.90	3.00	3.20	3.60	4.00	5.00	6.00	6.30	7.10	8.00	10.00
	THEORETICAL WEIGHT Kg/mt
33.7	1.78	1.99	2.20	2.27	2.41	2.67	2.93	3.54	4.10	4.26
42.4	2.27	2.55	2.82	2.91	3.09	3.44	3.79	4.61	5.39	5.61	6.18	6.79
48.3	2.61	2.93	3.25	3.35	3.56	3.97	4.37	5.34	6.26	6.53	7.21	7.95
51.0		3.10	3.44	3.55	3.77	4.21	4.64	5.67	6.66	6.94	7.69	8.48
57.0		3.49	3.87	3.99	4.25	4.74	5.23	6.41	7.55	7.88	8.74	9.67
60.3		3.70	4.10	4.24	4.51	5.03	5.55	6.82	8.03	8.39	9.31	10.32
63.5		3.90	4.33	4.48	4.76	5.32	5.87	7.21	8.51	8.89	9.87	10.95
70.0				4.96	5.27	5.89	6.51	8.01	9.47	9.90	11.01	12.23
76.1				5.41	5.75	6.44	7.11	8.77	10.37	10.84	12.08	13.43	16.30
82.5				5.88	6.26	7.00	7.74	9.56	11.32	11.84	13.20	14.70	17.88
88.9				6.35	6.76	7.57	8.37	10.34	12.27	12.83	14.32	15.96	19.46
101.6					7.76	8.70	9.63	11.91	14.14	14.81	16.55	18.47	22.59
114.3					8.77	9.83	10.88	13.48	16.02	16.78	18.77	20.97	25.72
139.7						12.08	13.39	16.61	19.78	20.72	23.22	25.98	31.98
159.0					12.29	13.80	15.29	18.99	22.64	23.72	26.60	29.79	36.74
168.3					13.03	14.62	16.21	20.13	24.01	25.17	28.22	31.62	39.04
177.8					13.78	15.46	17.14	21.31	25.42	26.64	29.89	33.50	41.38
193.7					15.03	16.88	18.71	23.27	27.77	29.11	32.67	36.63	45.30
219.1					17.04	19.13	21.22	26.40	31.53	33.06	37.12	41.65	51.56
244.5					19.04	21.39	23.72	29.53	35.29	37.01	41.57	46.66	57.83
273.1						23.93	26.54	33.06	39.52	41.45	46.57	52.30	64.88
323.9							31.55	39.32	47.04	49.34	55.47	62.32	77.41
355.6							34.68	43.23	51.73	54.27	61.02	68.57	85.22
406.4								49.49	59.24	62.16	69.91	78.60	97.75
457.0									66.73	70.02	78.77	88.58	110.23
508.0									74.28	77.94	87.70	98.64	122.81
558.0									81.67	85.71	96.45	108.50	135.14
610.0										93.80	106.00	119.00	148.00

Stainless steel pipes

Stainless steel pipes

Stainless steel pipes range

Download the technical data sheet in PDf format
